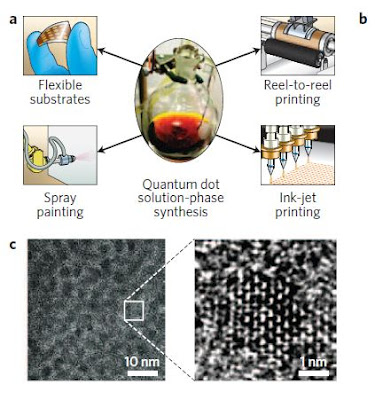

Solution-processed quantum dot solar cells. a, After synthesis, the colloidal quantum dots are deposited onto a flexible substrate at low temperature. Processing techniques for achieving this include spin-coating, spray-coating, reel-to-reel printing and ink-jet printing. b, The absorption spectrum of a colloidal quantum dot film (bottom) is readily matched to the power spectrum of the Sun reaching the Earth (top). Nanoparticles with a short-wavelength infrared bandgap can be shifted to blue wavelengths at the synthesis stage by ensuring that they have dimensions on the order of (or smaller than) the Bohr exciton radius (ϕ) characteristic of their constituent semiconductor material. c, Colloidal quantum dots that are single-crystalline and substantially monodispersed (same diameter and shape) make up each junction of a single- or multijunction solar cell. Transmission electron microscopy shows both their monodispersed (left) and crystalline (right) nature.

Credit: Professor Ted Sargent

“Previously, quantum dot solar cells have been limited by the large internal surface areas of the nanoparticles in the film, which made extracting electricity difficult,” said Dr. Susanna Thon, a lead co-author of the paper. “Our breakthrough was to use a combination of organic and inorganic chemistry to completely cover all of the exposed surfaces.”

Quantum dots are semiconductors only a few nanometres in size and can be used to harvest electricity from the entire solar spectrum – including both visible and invisible wavelengths. Unlike current slow and expensive semiconductor growth techniques, CQD films can be created quickly and at low cost, similar to paint or ink. This research paves the way for solar cells that can be fabricated on flexible substrates in the same way newspapers are rapidly printed in mass quantities.

The U of T cell represents a 37% increase in efficiency over the previous certified record. In order to improve efficiency, the researchers needed a way to both reduce the number of “traps” for electrons associated with poor surface quality while simultaneously ensuring their films were very dense to absorb as much light as possible. The solution was a so-called “hybrid passivation” scheme.

“By introducing small chlorine atoms immediately after synthesizing the dots, we’re able to patch the previously unreachable nooks and crannies that lead to electron traps,” explained doctoral student and lead co-author Alex Ip. “We follow that by using short organic linkers to bind quantum dots in the film closer together.”

Work led by Professor Aram Amassian of KAUST showed that the organic ligand exchange was necessary to achieve the densest film.

“The KAUST group used state-of-the-art synchrotron methods with sub-nanometer resolution to discern the structure of the films and prove that the hybrid passivation method led to the densest films with the closest-packed nanoparticles,” stated Professor Amassian.

The advance opens up many avenues for further research and improvement of device efficiencies, which could contribute to a bright future with reliable, low cost solar energy.

According to Professor Sargent, “Our world urgently needs innovative, cost-effective ways to convert the sun’s abundant energy into usable electricity. This work shows that the abundant materials interfaces inside colloidal quantum dots can be mastered in a robust manner, proving that low cost and steadily-improving efficiencies can be combined.”
