Researchers at the University of Twente’s MESA+ research institute have managed to transmit more than 10 bit of information with a single photon. They achieved this using an ingenious method for detecting individual photons. The knowledge gained from this study can be used to improve the security and speed of quantum communication.
When asked “How much information can you transmit using just a single photon?” most scientists would answer ‘one bit’ (either a ‘1’ or a ‘0’). In theory, however, there is no limit to the amount of information you can transmit with a single photon. There are, however, many practical considerations that limit the amount of information per photon. Using an innovative method, University of Twente researchers have now managed to transmit no less than 10.5 bits of information with a single particle of light.

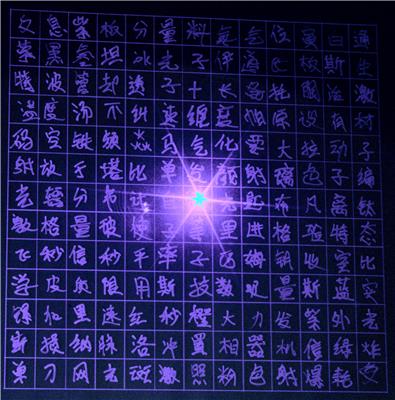

Illustration of a large alphabet of symbols that can be used to encode a lot of information (more than 10 bit in our case) into a single photon.
Credit: University of Twente
The research results were published January 3rd in the scientific journal Optics Express.
Method
Prof. Pepijn Pinkse, one of the researchers involved, explains how the system works. “You can compare it to shining a laser pointer onto letters mounted on a groove board. The illuminated letter is the information contained in the laser pointer’s light. The number of letters on the groove board determines the amount of information you can transmit with the light.”
The main difference is that Prof. Pinkse and his team created an alphabet of 9072 characters, and they – unlike the laser pointer in the analogy above – transmitted the information with a single photon. That was the key challenge in this study: single photon detection. This is because noise (random photons) can impede measurement.
The researchers devised a clever ruse to eliminate any noise. They exploited the fact that individual blue photons can split into exactly two red photons. The researchers arranged for the first photon to send a signal to the detector (which is comparable to a digital camera), which then opened up very briefly. Using a mirror, the second photon was directed at the desired letter of the specially created alphabet. However, they forced this photon to make a slight detour, so that it arrived at the target letter at exactly the same time as the detector opened up. That was the only instant at which photons were able to pass into the detector. In this way, the researchers were able to eliminate noise.
In practical terms, it is difficult to specify the maximum amount of information you can transmit with a single photon, according to Pinkse. “Using our method, there is no theoretical limit to the amount of information that can be sent. The amount of information depends on the size of the alphabet you create. But, even if you could create an alphabet with as many characters as there are atoms in our entire universe, you would still only be able to transmit a maximum of 270 bits with one photon.”
Study
Prof. Pinkse, who originally made his name by developing an unhackable credit card, says that the main objective of this study is to raise quantum communications to a higher level. “The more information you can transmit with photon, the more secure and the faster you can make quantum communication.”
Contacts and sources: University of Twente
Citation: The study was carried out byTransmitting more than 10 bit with a single photon, Tristan B. H. Tentrup, Thomas Hummel, Tom A. W. Wolterink, Ravitej Uppu, Allard P. Mosk, and Pepijn W. H. Pinkse . Optics Express Vol. 25, Issue 3, pp. 2826-2833 (2017)
