Video: Moth Drives Tiny Robot To Track Female For Sex
A small, two-wheeled robot has been driven by a male silkmoth to track down the sex pheromone usually given off by a female mate.
The robot has been used to characterize the silkmoth’s tracking behaviors and it is hoped that these can be applied to other autonomous robots so they can track down smells, and the subsequent sources, of environmental spills and leaks when fitted with highly sensitive sensors.
The results have been published in the February 6th issue of Bioinspiration and Biomimetics an IOP Publishing’s journal .
The male silkmoth was chosen as the ‘driver’ of the robot due to its characteristic ‘mating dance’ when reacting to the sex pheromone of the female. Once the male is stimulated by the pheromone it exhibits a distinctive walking pattern: straight-line and zigzagged walking consisting of several turns followed by a loop of more than 360°.
Credit: IOP
Lead author of the research, Dr Noriyasu Ando, said: “The simple and robust odour tracking behaviour of the silkmoth allows us to analyse its neural mechanisms from the level of a single neuron to the moth’s overall behaviour. By creating an ‘artificial brain’ based on the knowledge of the silkmoth’s individual neurons and tracking behaviour, we hope to implement it into a mobile robot that will be equal to the insect-controlled robot developed in this study.”

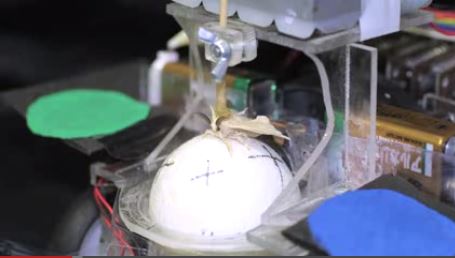

The researchers, from the University of Tokyo, attached the silkmoth to a free-moving polystyrene ball at the front of the robot which was used for overall control, much like the ball in a computer mouse.
Two 40 millimeter fans were attached at the front to divert the pheromone-containing air to the on-board moth – the researchers believe the fans are comparable to the wings of the silkmoth that flap to generate air flow across its antennae.
A 1800 millimeter wind tunnel was used in the experiments; the pheromone and robot were placed at opposite ends. Fourteen silkmoths were used in the study and all of them were able to successfully guide the robot towards the source.
The researchers also introduced a turning bias to the experiments, changing the power of one of the robot’s two motors so it veered towards one side when moving. This put the silkmoth into an extraordinary situation and required it to adapt and change its behavior.
“The best way to elicit adaptive behaviors of insects is to put them into extraordinary situations. The turning bias in our study is analogous to a situation in which we try to ride unbalanced bicycles. We need training to ride such bicycles smoothly but the silkmoth overcomes the situation with only simple and fast sensory-motor feedbacks,” said Dr Ando.
It is important that the chemical sensors attached to a potential robot have a short response and processing time when tracking down odors continuously, which is why the researchers also investigated the effect of a time delay between the movement of the silkmoth and the response of the motor.
“Most chemical sensors, such as semiconductor sensors, have a slow recovery time and are not able to detect the temporal dynamics of odors as insects do. Our results will be an important indication for the selection of sensors and models when we apply the insect sensory-motor system to artificial systems,” continued Dr Ando.
Contacts and sources:
From Wednesday 6 February, this paper can be downloaded here.
